Crawler Loader

My favorite One Set MOC from bulldozer 8275 I created. Equiped with drive, tilted and lifted bucket, only with part of 8275. Including MLcad building instructions.

This is my first one set moc with 8275, I wanted to build a affordable moc with interesting and reliable functions for the AFOLs. I think I have succeed. 2 XL motor drive crawler with 8/24 reduction. Two M motor operate bucket movements. The technique I used is a simple worm gear with lever and connecting rod (in a parallelogram construction). The building instructions took  up many time, about 50hours, spite of I have built this moc in 10 hours. But the result is quite good : building instructions look professional.

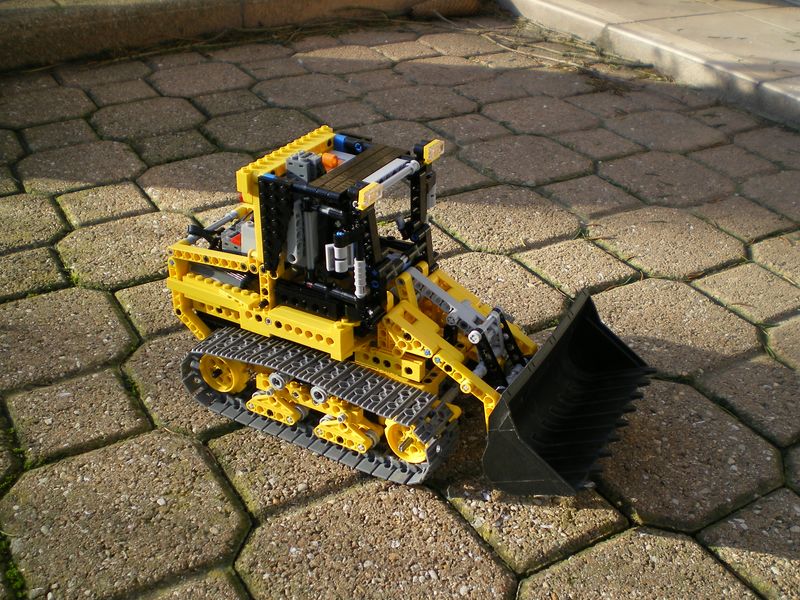

IMGP1000

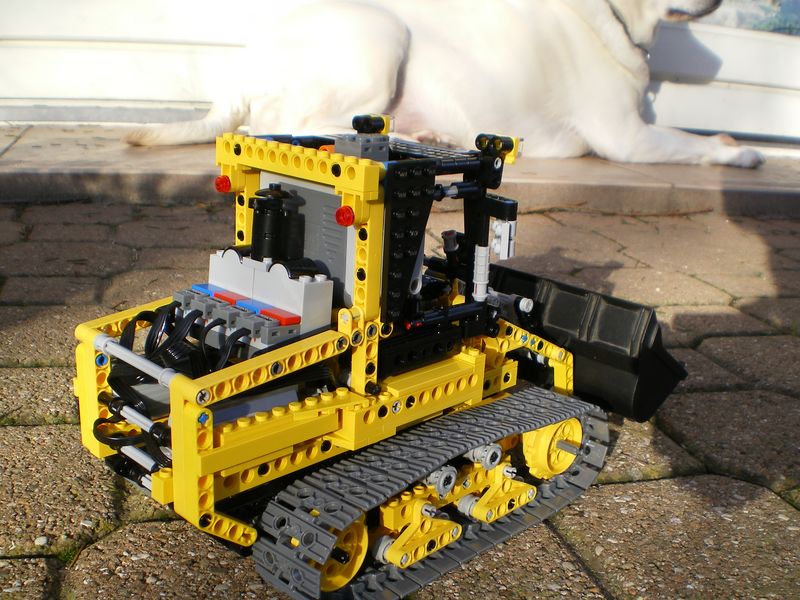

IMGP1002

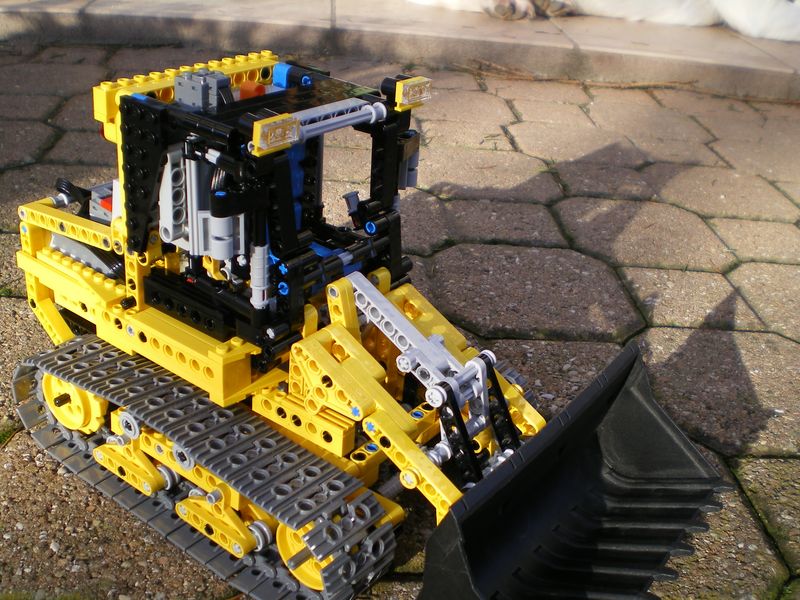

IMGP1004

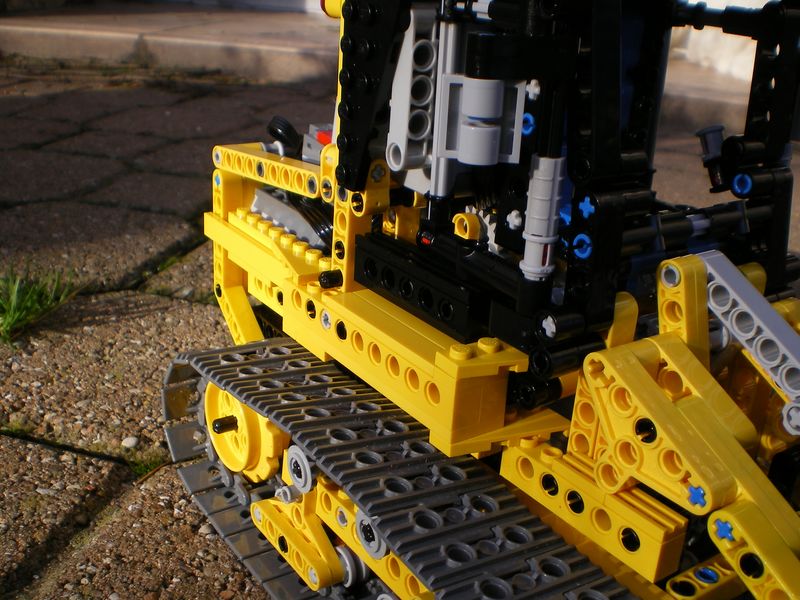

IMGP1006

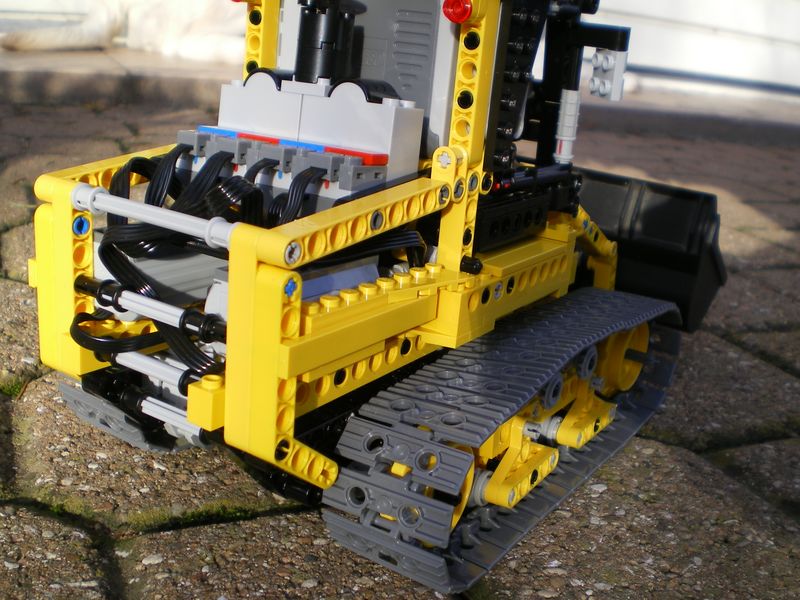

IMGP1007
IMGP1013

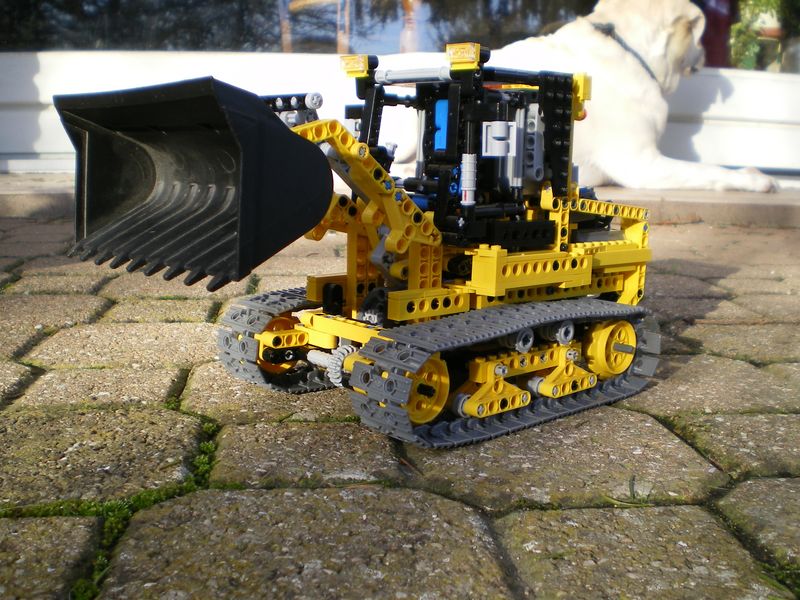

IMGP1014

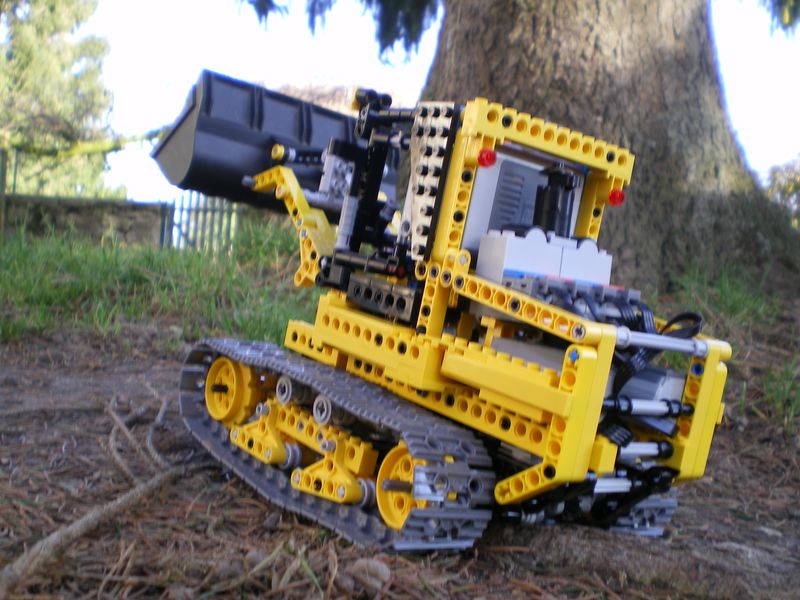

IMGP1020

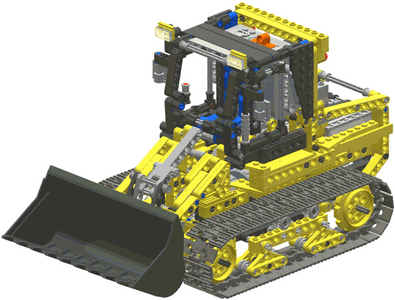

montage
imgp1000

Building Instructions

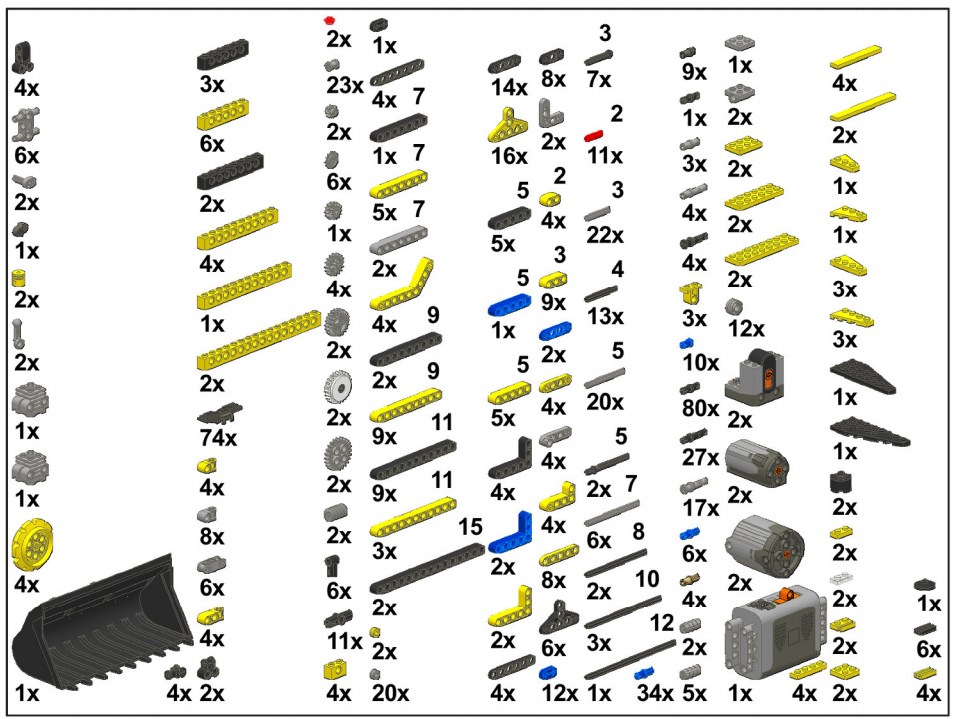

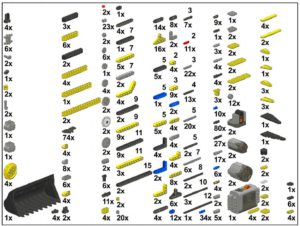

I have made pro building instructions using MLcad and Lpub. As usual, you can buy it for 5€ and then download the instruction immediately. Here is the complete bill of material in picture file :

But you can also checked it on rebrickable (or make any export you want)

Want to check before if you can build this moc ? The Crawler Loader PFS has been indexed to Rebrickable.com, the website which matchs your parts with mocs !

You can buy the instructions with the following button for 5€. You can also buy other building instructions and get an automated discount. You will get 15% off for 2 PDF, and 20% off for 3 PDF on the total), available for all the instructions for sale on nico71.fr.

See it on the Shop :

8275 Model B – Crawler Loader
5,00 € -Excl. Tax
A remote controlled alternate model (+ a bucket) of the LEGO Technic Set 8275 - Bulldozer as a Crawler Loader. Features drives, raising and tilting bucket, openable doors.

After your payment, you will be redirected to a page for downloading your instructions, and will receive also the link to download by email. Please check the spam box and be patient to receive it. If you have trouble to download your copy of the PDF after payment or open the document, do not make a paypal dispute, please contact me using the contact form. The link to download the instructions expires within 24h. Contact me if you have lost your instructions. Note that you can print it, but not copy or distribute. Thank you for supporting my work 🙂

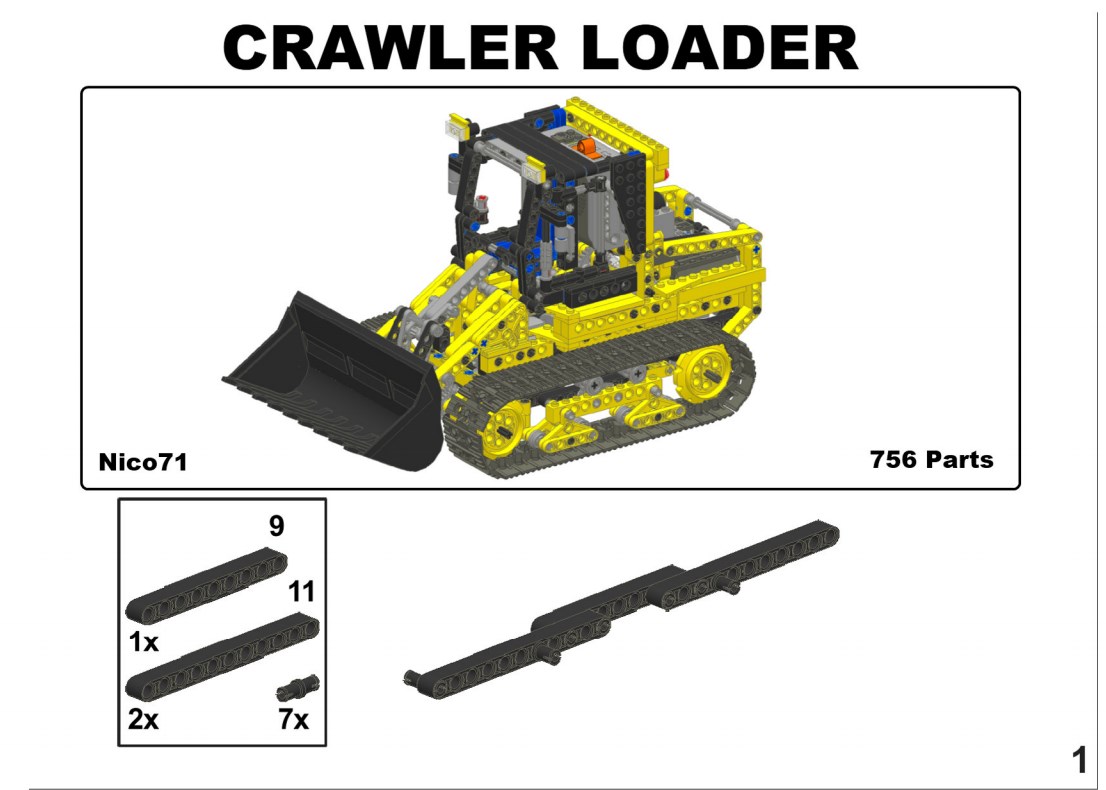

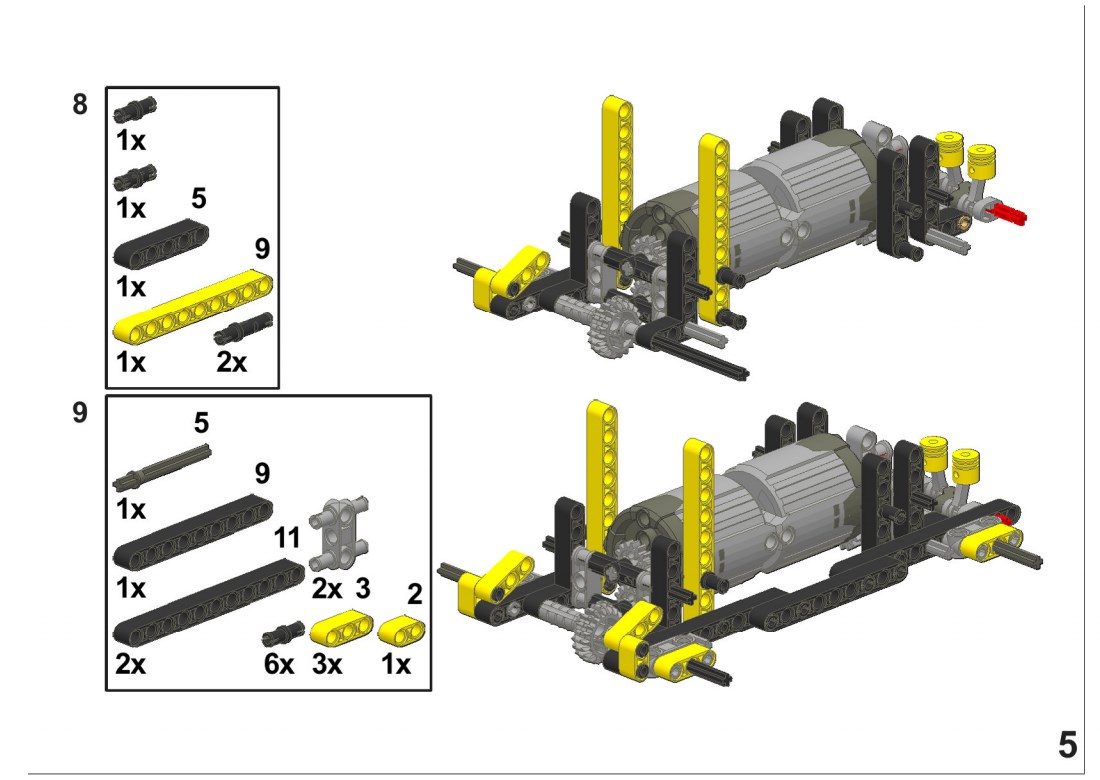

Here is some preview of the building instructions :

Designed in 2008
