42080 Model C – Forwarder

10,00 € -Excl. Tax

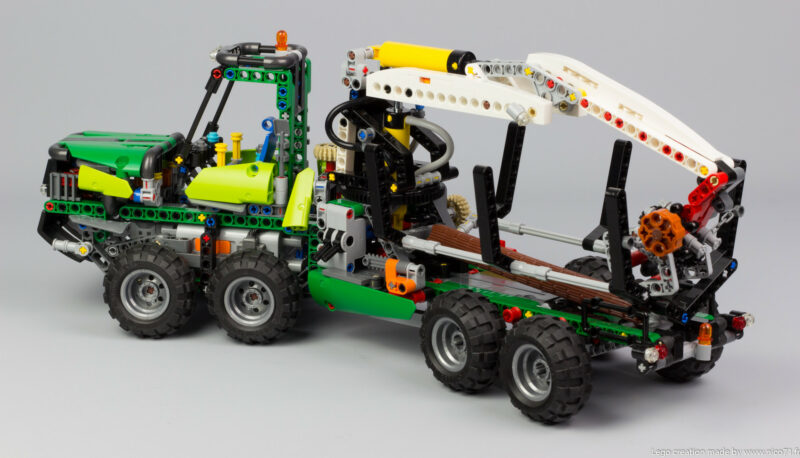

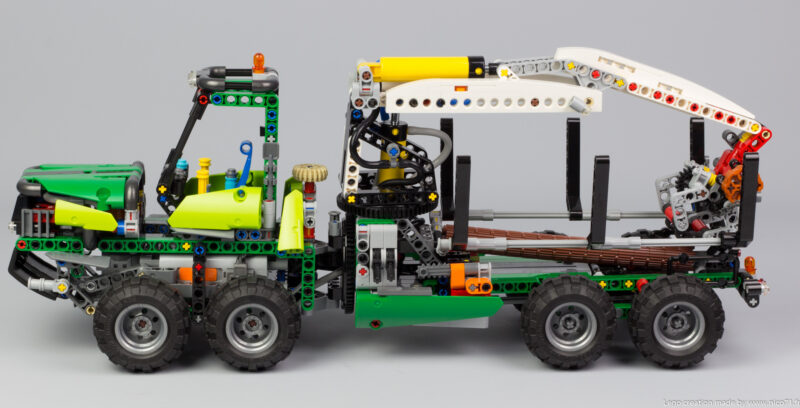

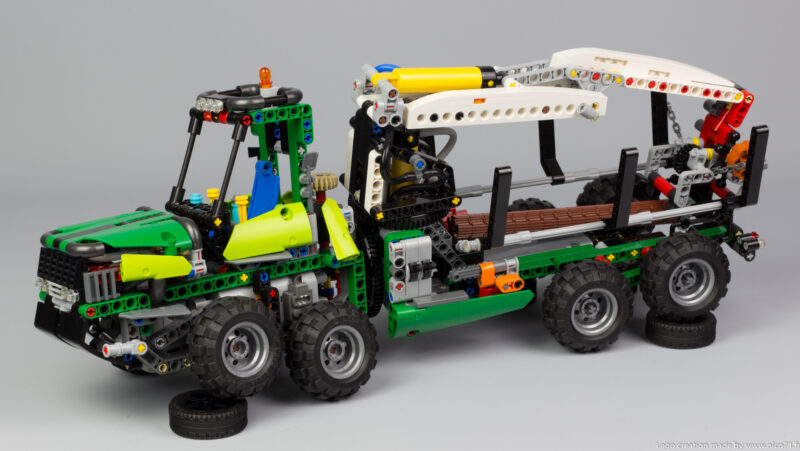

A Forwarder based on the inventory of the 42080 LEGO Technic Set – harvester, features articulated steering with steerable rear axle, pneumatic arms with motorized compressor, manual grabber, rotating cabin and opening doors and hood.

SKU: 42080_HARVESTER Categories: ,

Video Presentation



Specifications

  • 8 wheels, no drivetrain
  • Longitudinal pendular suspensions on each axle
  • Articulated roll center suspension (turntable)

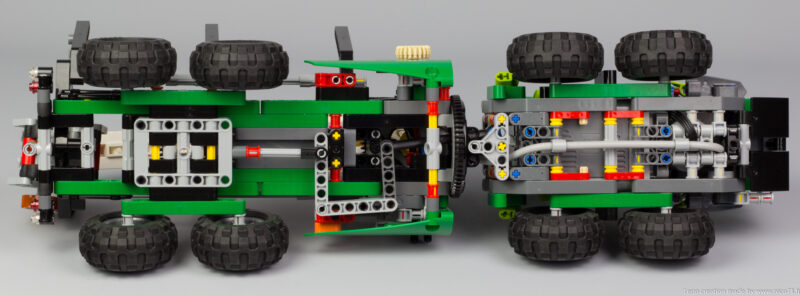

  • Articulated Steering with steerable linked rear axle

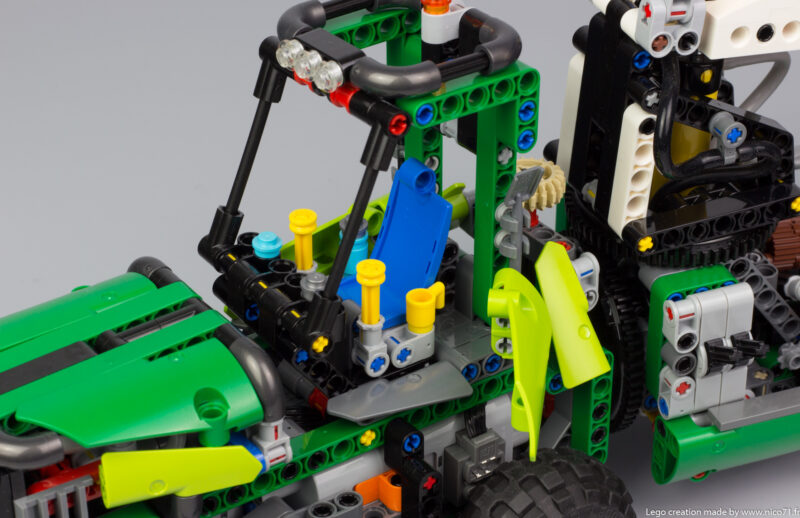

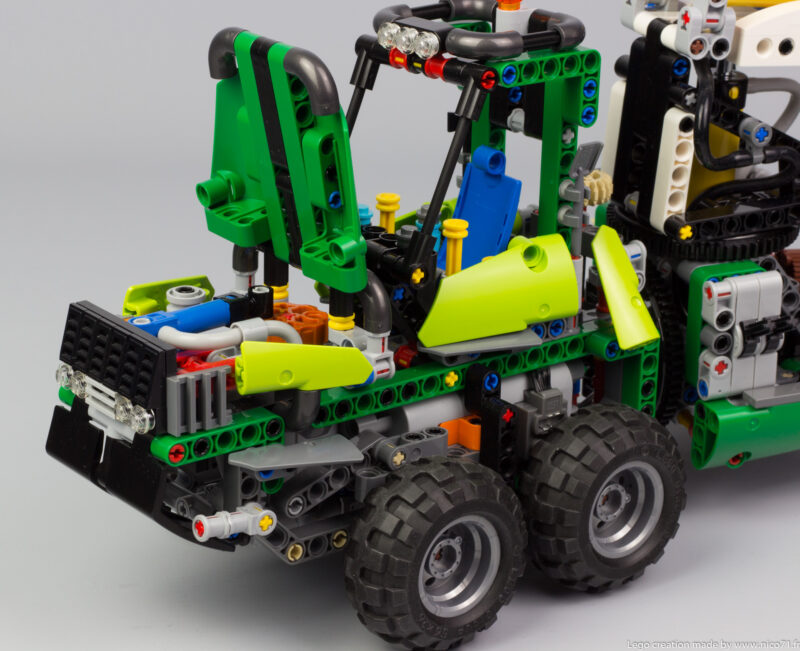

  • Rotating cabin and openable doors and hood

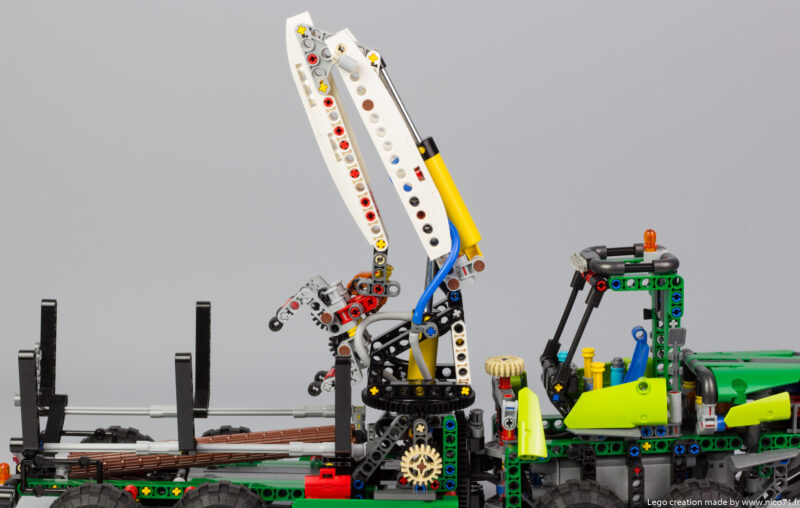

  • Rotating crane (manual with a knob)
  • Pneumatic functions powered by a L motor and a single compressor
  • Double acting pneumatic functions on both section of the arm

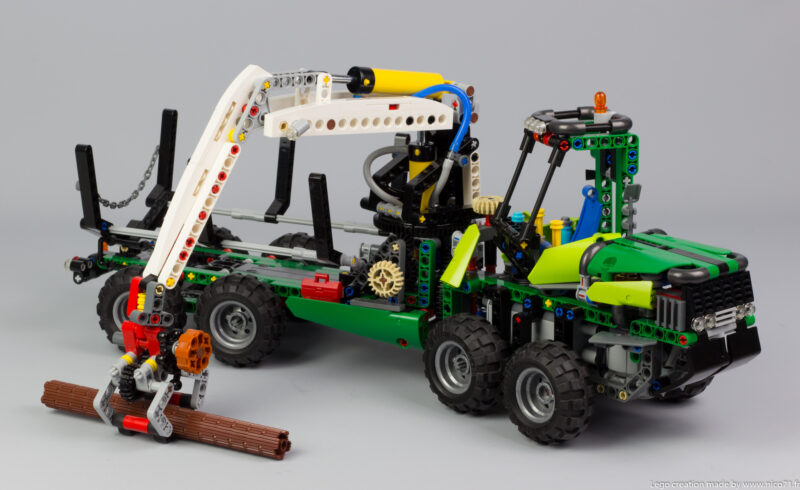

  • Rotating grabber, grabbing with a friction knob

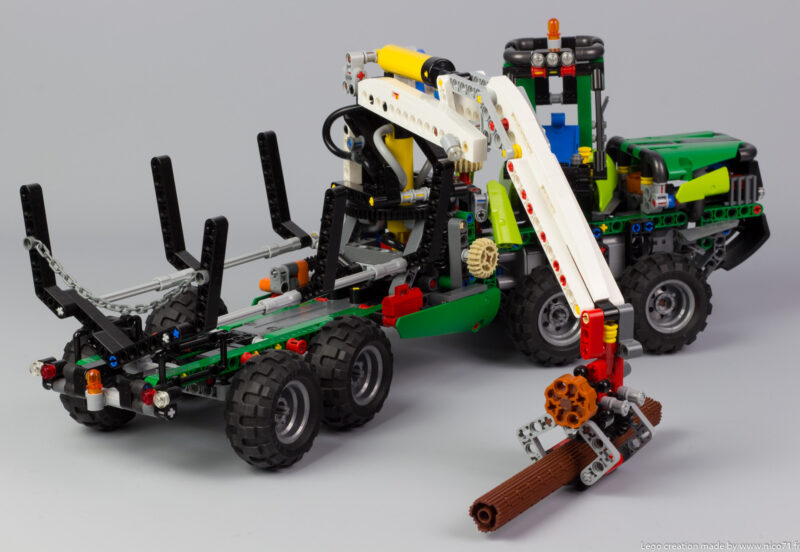

  • Storage for the wood stock on the back.

You can read the full review of this model on the blogpost.

How to build ?

If you own the 42080 Lego Technic Set – Forest Harvester , you can build this creation without any additional parts. You only need to purchase the PDF instructions on this page.

You can see the bill of material in the instructions, as well as in the instructions preview below. You can also check it on Rebrickable.

About this product

Instructions preview

42080_model_D_instructions_preview_1
42080_model_D_instructions_preview_2
42080_model_D_instructions_preview_3
42080_model_D_instructions_preview_4
42080_model_D_instructions_preview_5
42080_model_D_instructions_preview_6
42080_model_D_instructions_preview_7
42080_model_D_instructions_preview_8
42080_model_D_instructions_preview_9
42080_model_D_instructions_preview_10
42080_model_D_instructions_preview_11
42080_model_D_instructions_preview_12



Additional information

Model Size

48x17x21cm
Categories

All, Alternate, Construction Equipment
Color

Green
Motorized

Yes (w/o drive)
Building Difficulty

Medium
Pieces Count

877
Bill Of Material

https://rebrickable.com/mocs/MOC-32456/Nico71/42080-model-c-forwarder/#parts
Purchased File

PDF Instructions (187 pages / 67mo)
