Foremost Delta 6×6
10,00 € -Excl. Tax

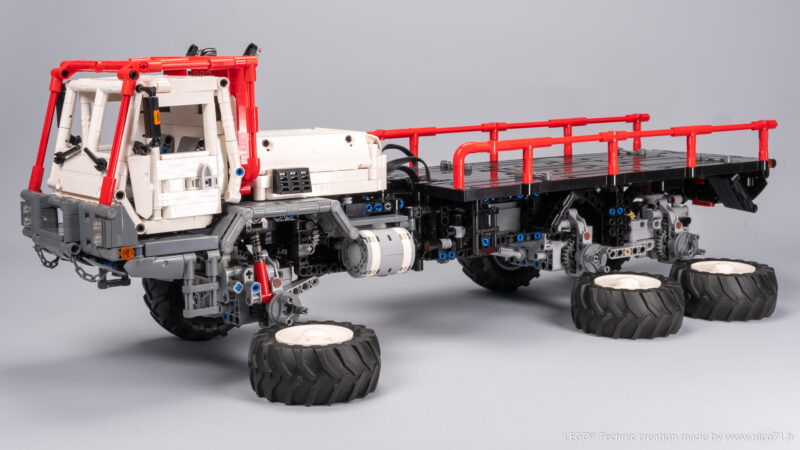

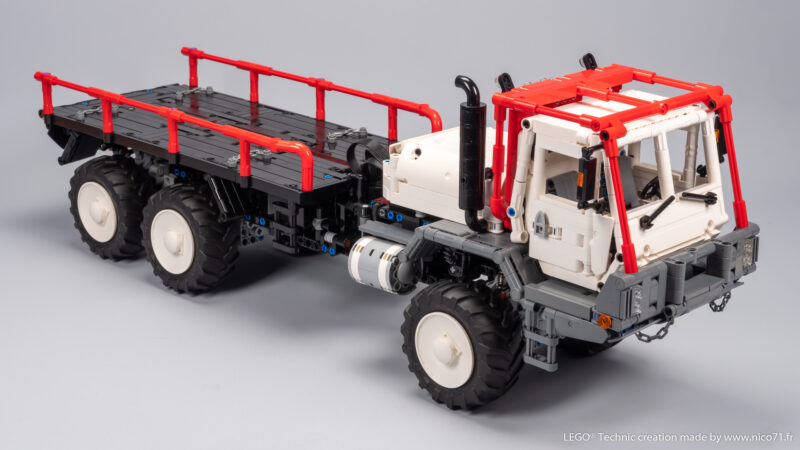

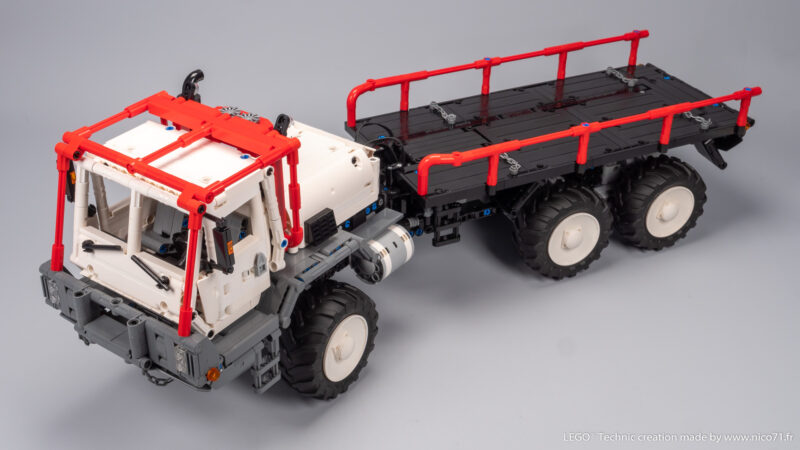

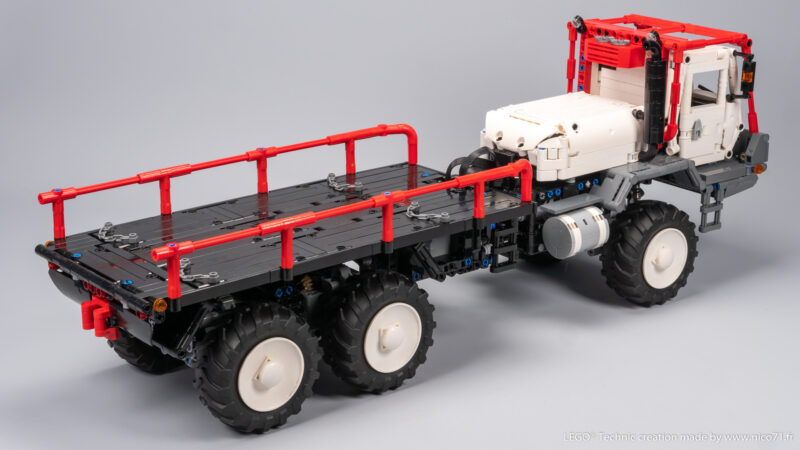

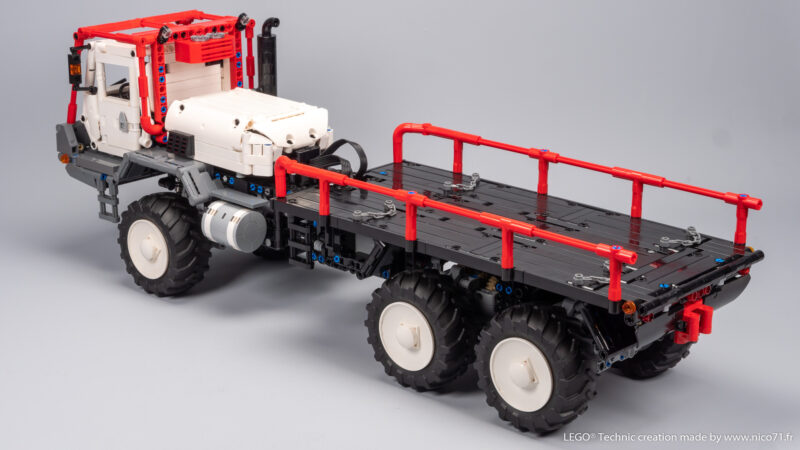

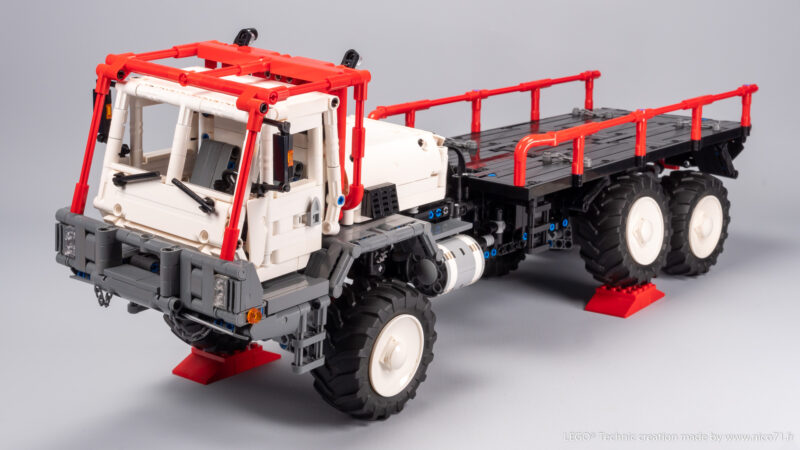

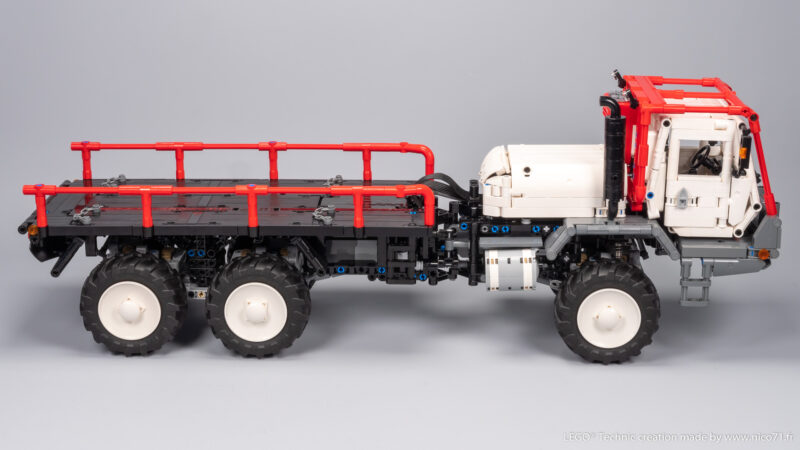

A remote controlled 1/20 reproduction of the Foremost Delta with 6×6 drivetrain, articulated steering, suspensions of all axle, with openables/removable elements and many details.
Video Presentation
The original model is an articulated truck, the 6×6 Delta, from the Canadian Manufacturer Foremost, which is mainly use in harsh terrain in oilfield, thanks to its low pressure tire, chassis-articulated steering and its payload. It can be equipped with many specific equipment, for logistical support, remote drilling operations, pipeline and powerline construction or maintenance.
You can watch the Design Secrets on YouTube, where I explain in an English spoken video how I designed this model.
Specifications
- Foremost Delta 6×6 in transporter version
- Scale 1/20, 60cm lenght, 16m width, 21cm height, 1.9kg weight.
- Remote controlled using Powered App from LEGO with bluetooth smartphone
- Control+ Motors (can be replaced by Power Function motors)
- Drive : 6×6, 2 L motors in the chassis
- Reinforced Constant-velocity joint, portal hub and differential on all axle (no locking)
- Steering : Central articulation with two linear actuators powered by a L motor
- Rear suspensions : tandem axle with Panhard rod connected with oscillating arm (bogie design)
- Front suspensions : live axle with shock absorbers and Panhard rod
- No winch, but front and rear are equipped to receive it
- Openable elements : doors

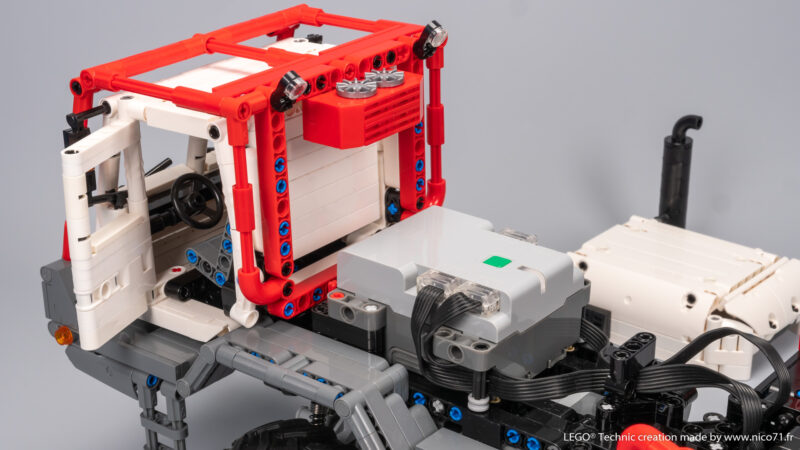

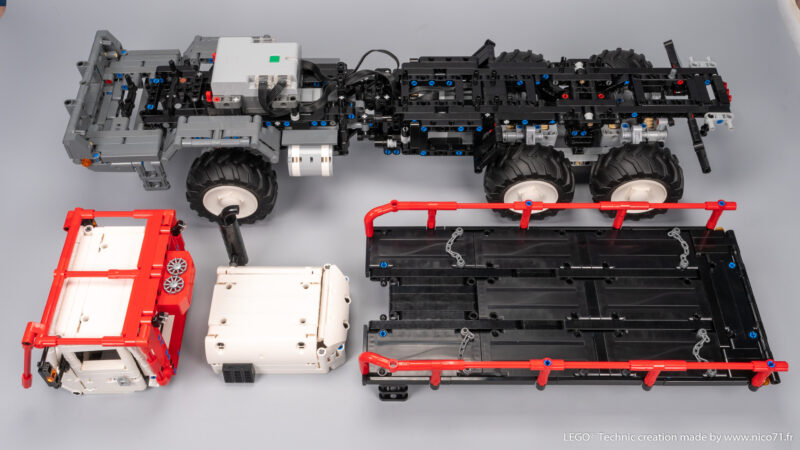

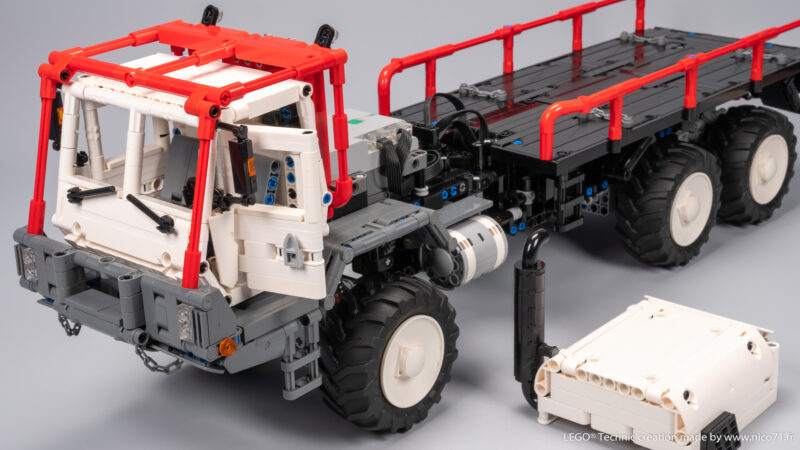

- Removable elements : battery cover, cabin, bed
How to build ?
You only need the parts and the instructions. You can purchase the PDF instructions on this shop (three versions) which contains the partlist at the end, but you can check on
Rebrickable or in the instructions preview below.
- White Version 2033 parts [rebrickable.com]
- Red Version 2035 parts [rebrickable.com]
- Manual Version (no motors) 2111 parts [rebrickable.com]
About this product
Instructions preview
White Version (Electrical Powered) : (Example of the App tutorial)
Electrical motors replaced by manual functions : fake V6 engine connected the the drivetrain. Linear actuator steering replaced by hand of god connected to the articulation with 8/24 ratio for best manual playability. Function Demontration Video [youtube.com]
Additional information
| Model Size | 60x16x21cm 1.9kg |
|---|---|
| Color | Black, Red, White |
| Categories | All, Truck |
| Motorized | Yes (with drive) |
| Building Difficulty | Medium |
| Piece Count | 2033 |
| Bill Of Material | See Rebrickable links |
| Purchased File | PDF Instructions (266 pages / 86mo) |
