Great Ball Contraption : The Wave
0,00 € -Excl. Tax

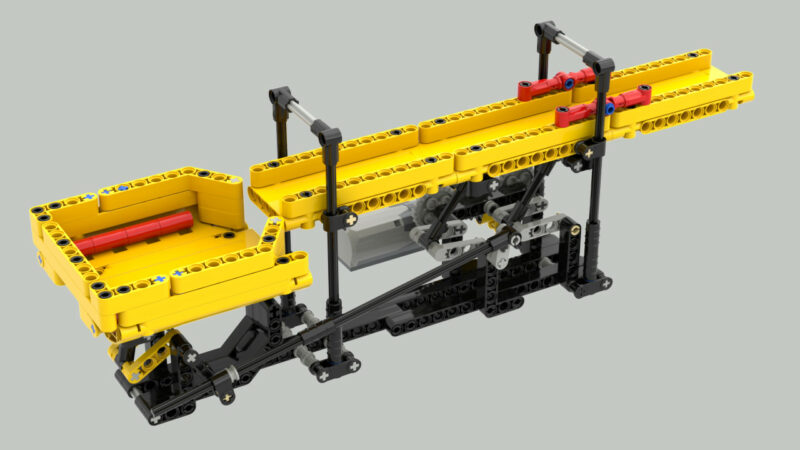

A Great Ball Contraption module in LEGO Technic, using a wave movement to move the balls from the input to the output. With free instructions.
Video Presentation
Functioning

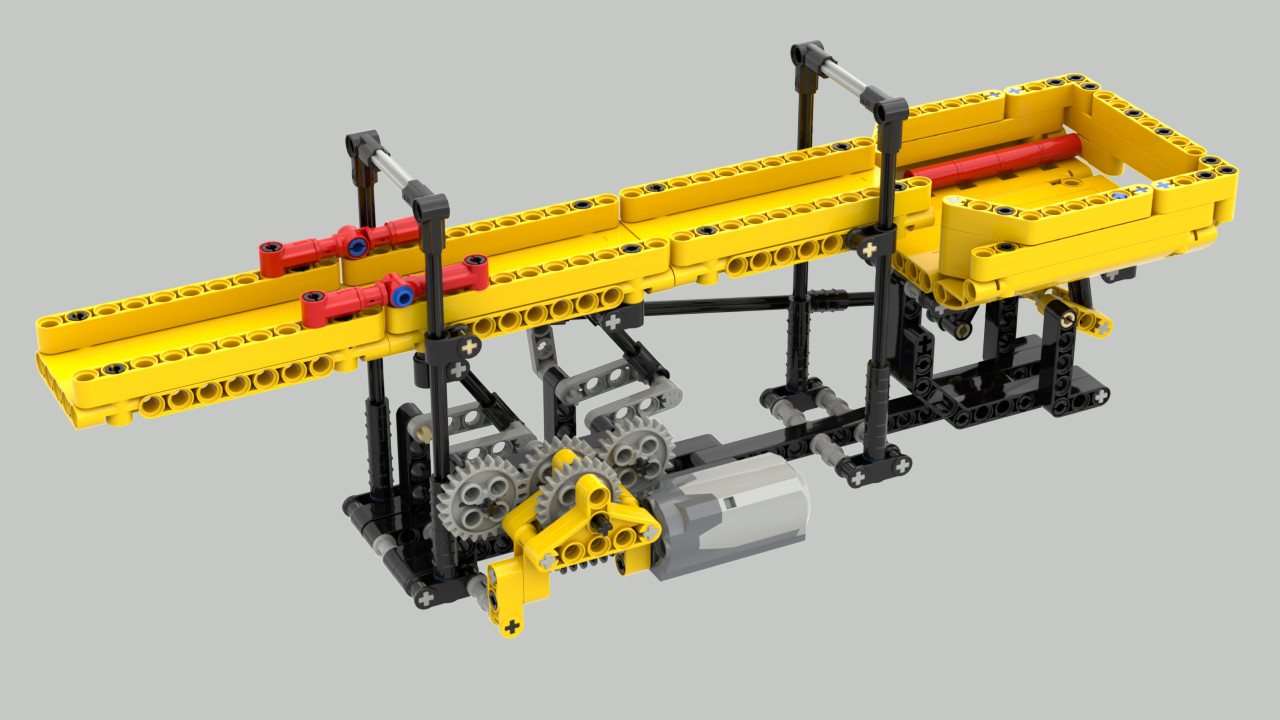

The motor drives a worm gear with a 24t which drives another 24t. Two crank-connecting rod system give the wave movement to the main banister. A other crank-connecting rod system with a push bushing operates the lifting of the drip tray.
How to build ?
The PDF instructions can be downloaded for free on this shop to be built with your own LEGO Parts. You can see the partlist below :
About this product
Additional information
| Model Size | 37cm long |
|---|---|
| Color | Yellow |
| Categories | All, Free, Machine |
| Motorized | Yes (machine) |
| Building Difficulty | Easy |
| Piece Count | 265 |
| Bill Of Material | https://rebrickable.com/mocs/MOC-0047/Nico71/gbc-module-the-wave/#parts |
| Purchased File | PDF Instructions (21 pages / 9mo) |
