30ft Workboat
10,00 € -Excl. Tax

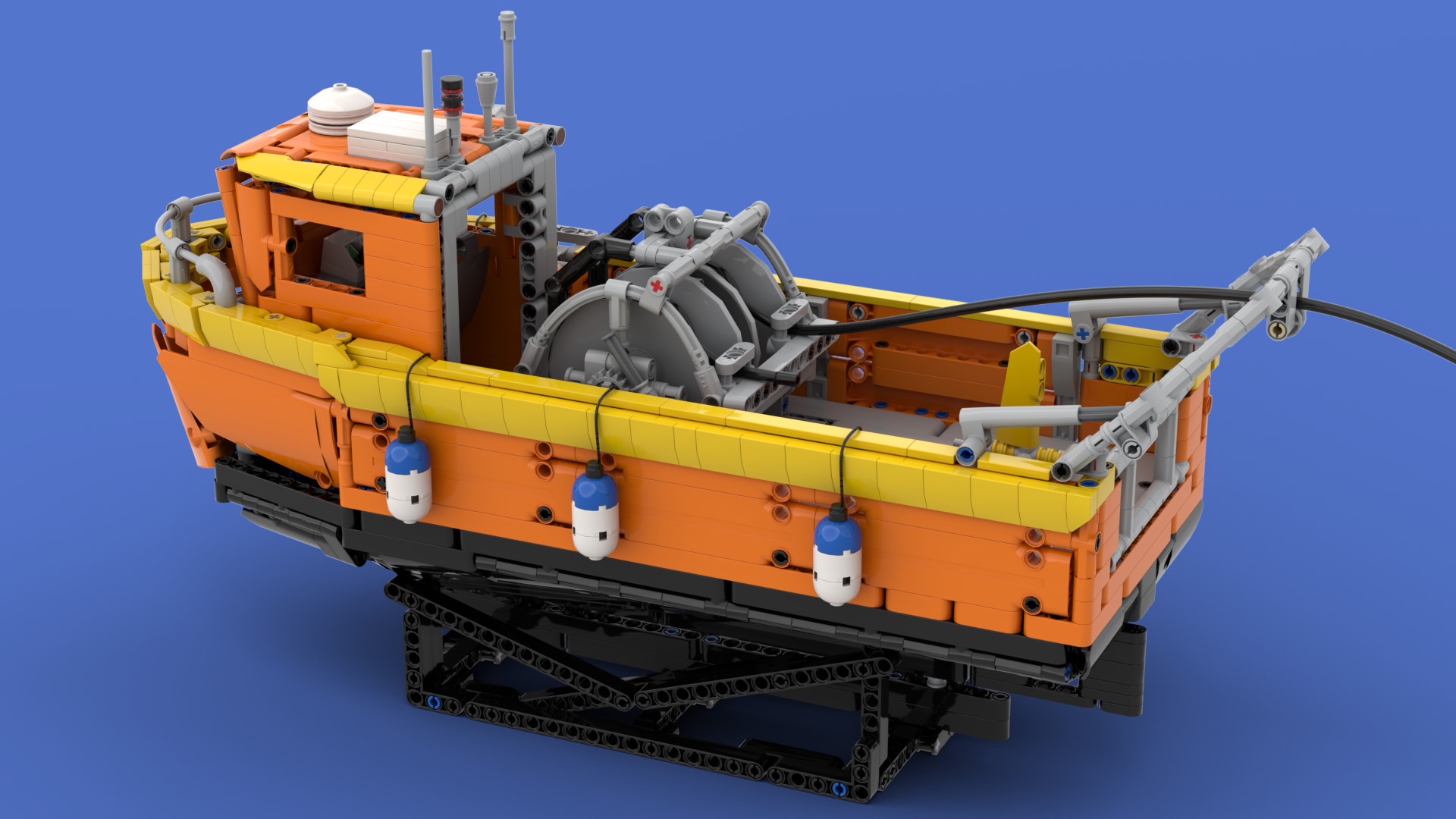

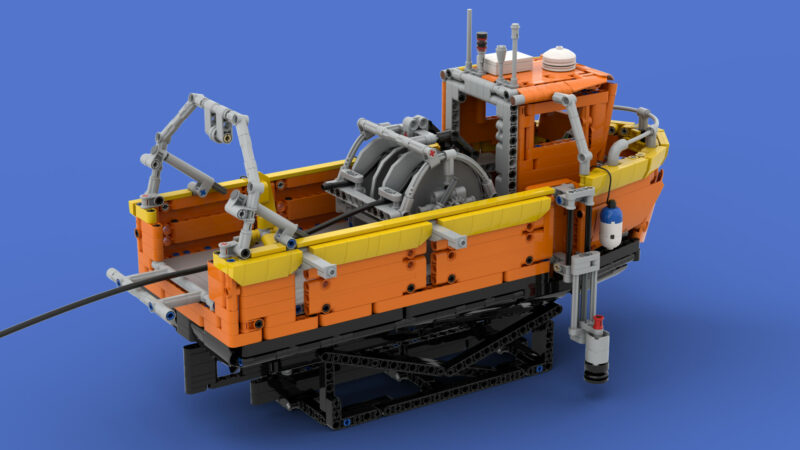

A LEGO Technic Seismic Workboat based on Jemar / Norpower 30ft boat, with dual winch with ratchet and probe, front winch, seismic element supports, and opening engine cover.
Video Presentation
Specifications
- 30ft Workboat based on Sercel boat from Jemar / Norpower
- Equipped for seismic operation but can be re-used for other purpose (rescue, research etc)
- Dimensions : 46x19x25cm (without end probe)

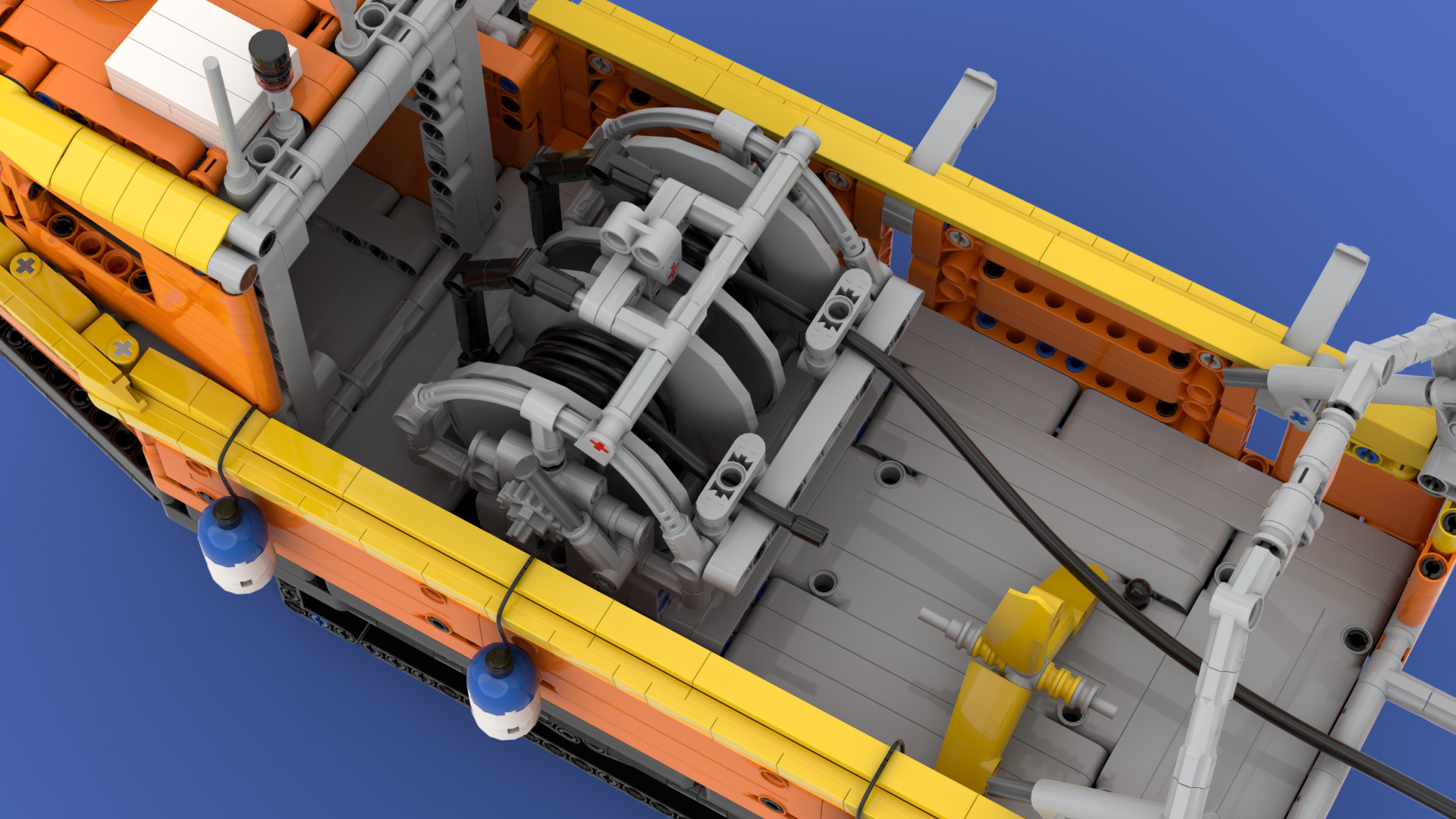

- Dual winchs with 2/4mm hose with ratchet mechanisms on each
- Front winch with ratchet (no anchor)
- Two seismic probes

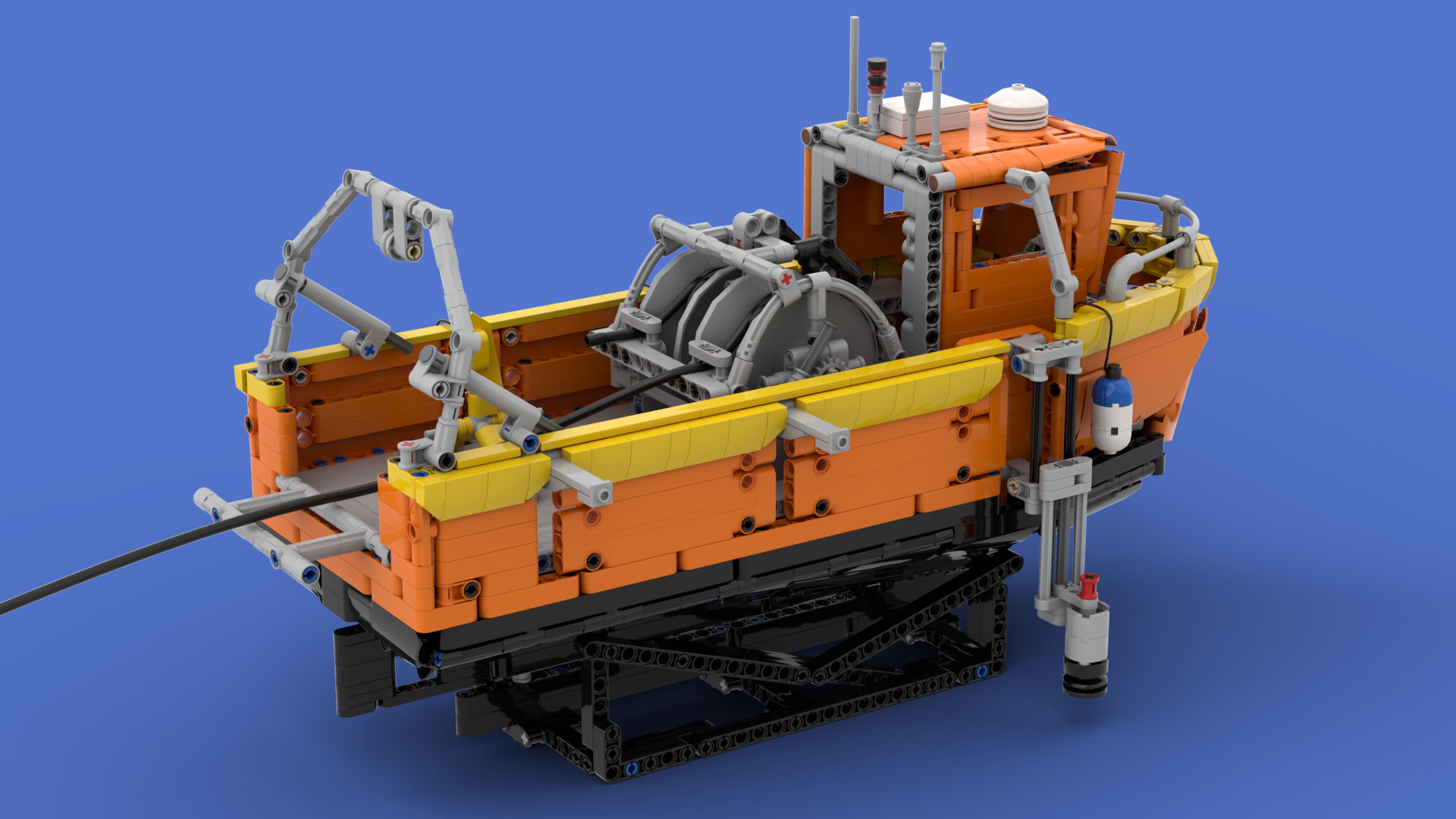

- Retractable side sensor (sliding mechanism with two sections)

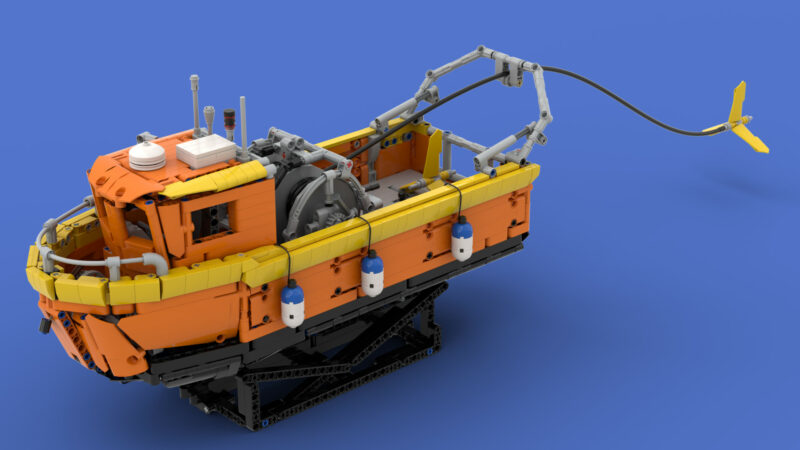

- Articulated rear bracket for support the probe hoses
- Articulated side arms for probe hoses recovery

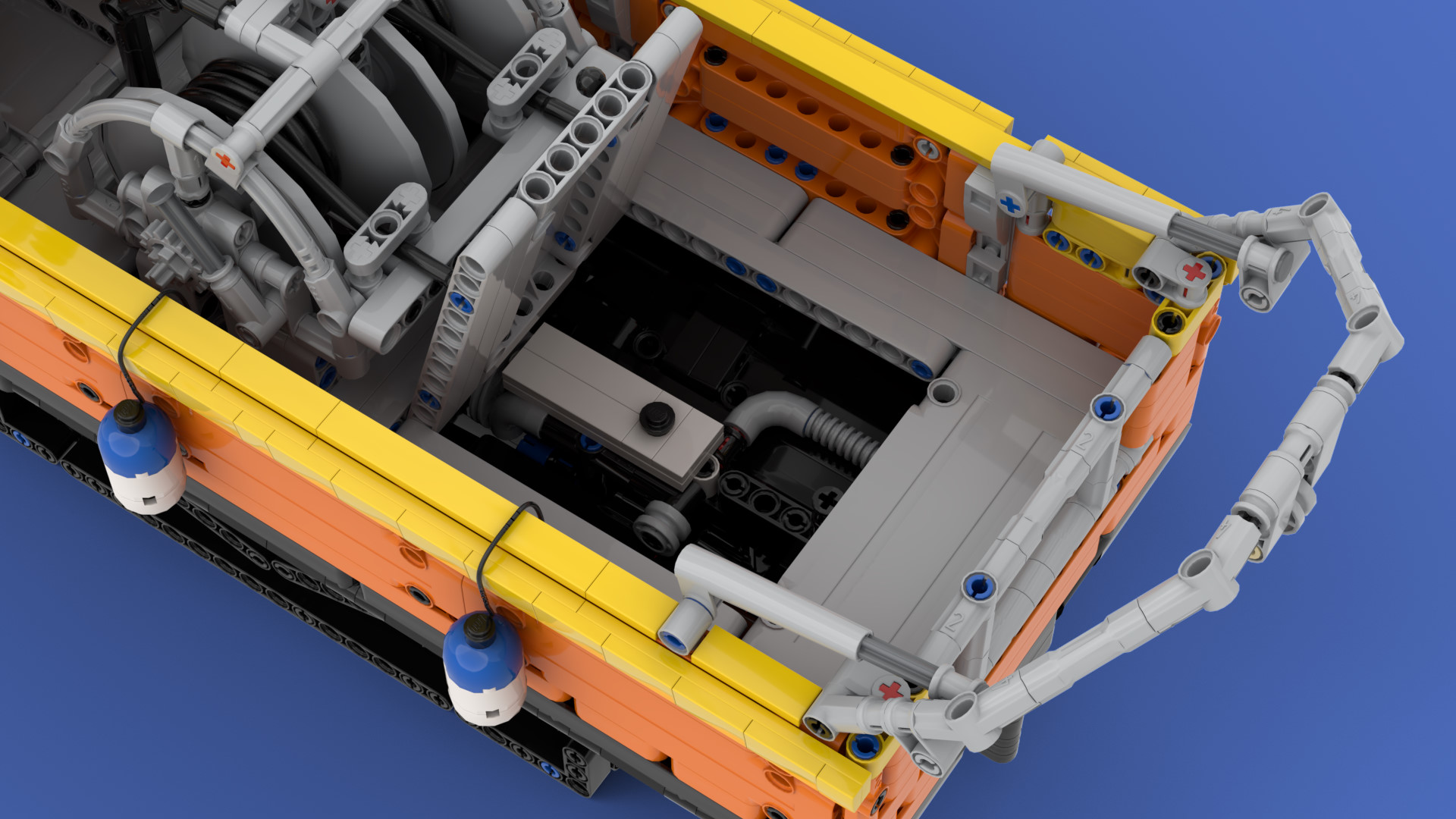

- Openable rear panel
- Openable engine cover
- Articulated rudder (non functional)

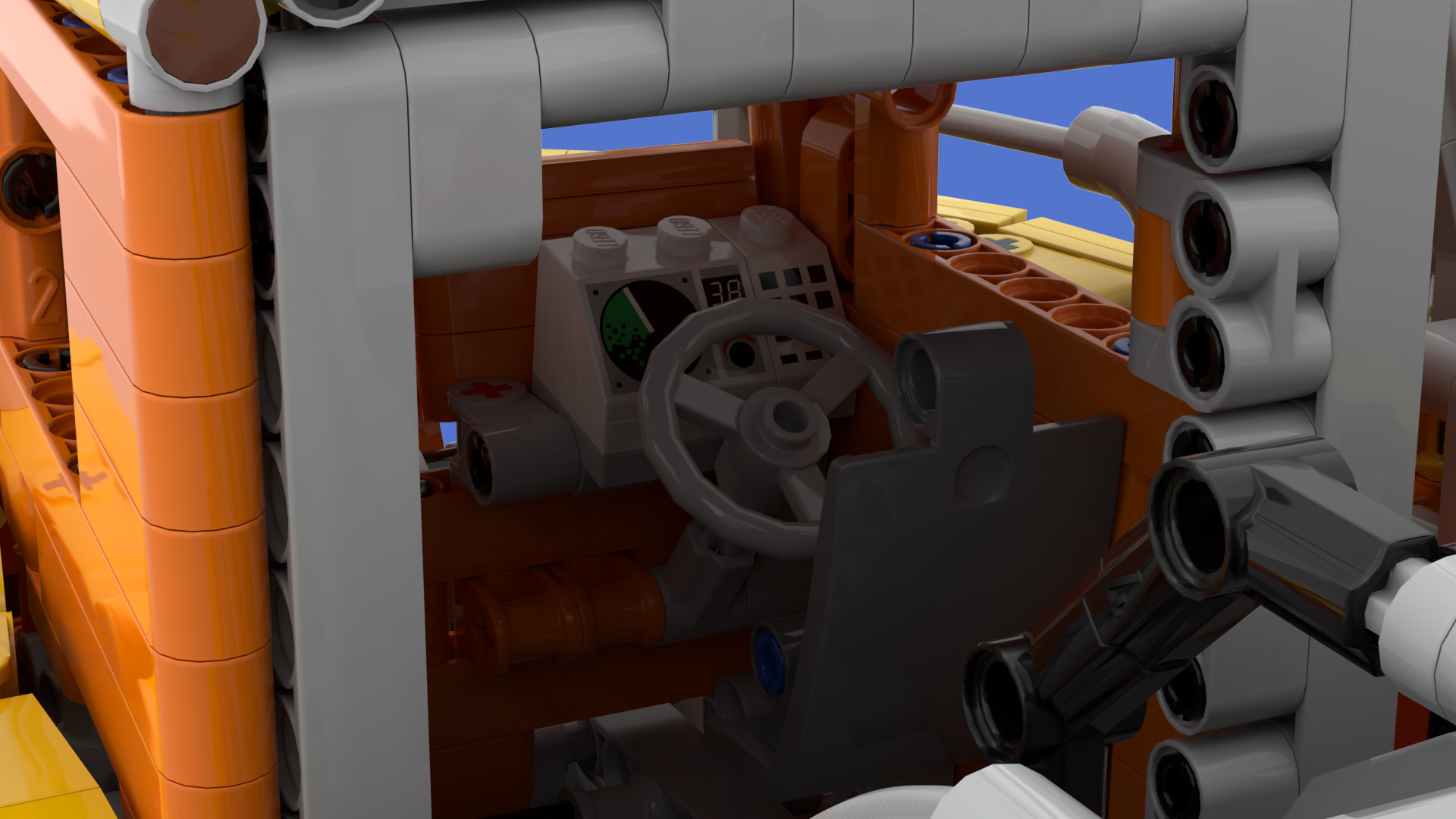

- Detailed cabin interior

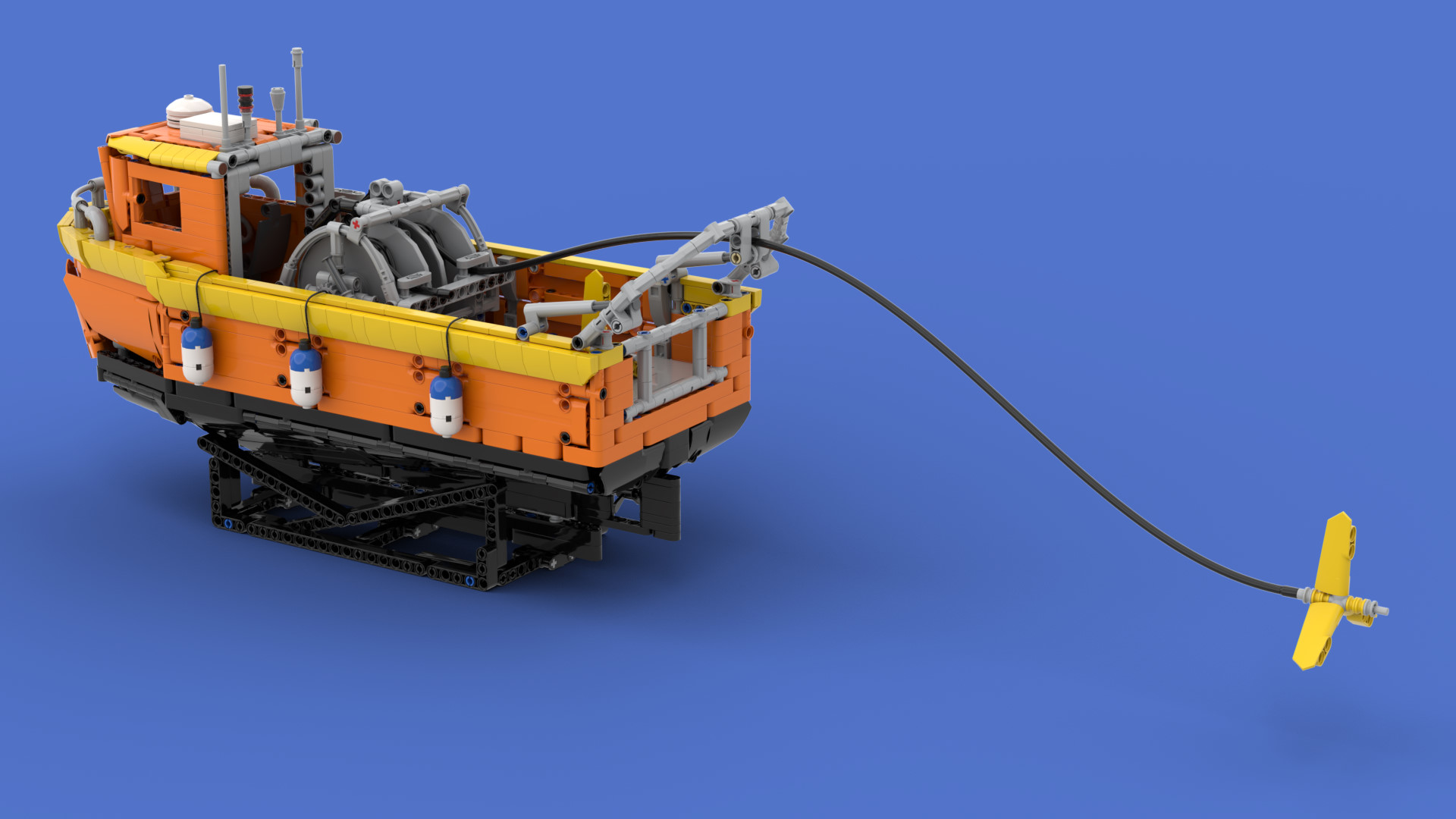

This boat is used for seismic exploration using acoustic probe in the sea. The 1 km cable is unloaded with the winch and pull in the sea, where the end probe can move to adjust its direction and depth and communicates with the boat directly though the cable. After the data acquisition, the boat use the telescopic cable lifter and the two flaps to lift the cable from the sea to wind back and get the probe. The cable lifter can also be equipped with fixed acoustic sensor (displayed on the LEGO model). You can see the real boat in action here.
How to build ?
You only need the parts and the instructions. You can purchase the PDF instructions on this shop which contains the partlist at the end, but you can also check on rebrickable or in the instructions preview below.
For part inquiry, please contact me with the contact form.
About this product

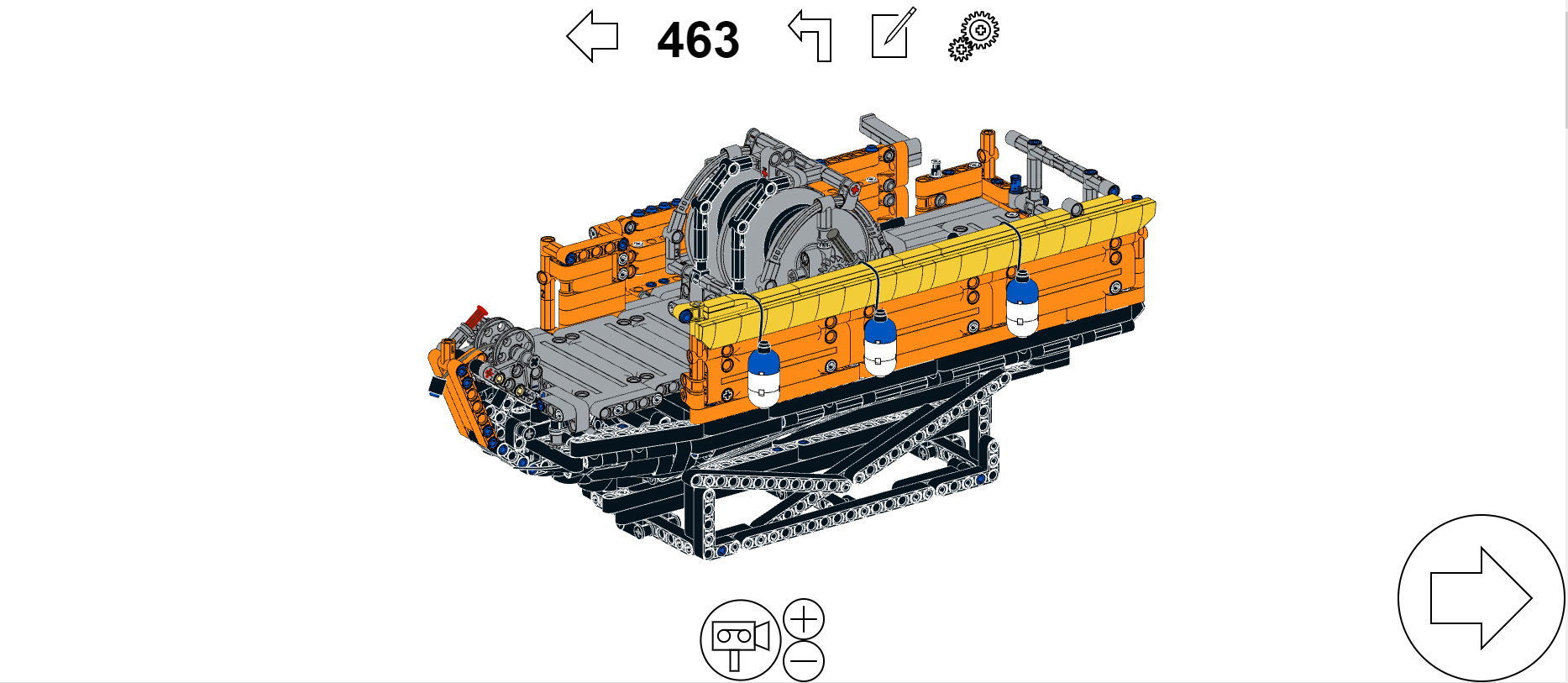

Instructions preview
Some history about this model
This model was designed in 2022, based on Jenmar Norpower boat with Sercel Livery. The aim was to display in a showroom to show the functioning of the boat. That is why it doesn’t float and is not motorized.
It was nevertheless quite a challenge to reproduce the boat, especially the hull and the colored decks with all the details, as well as the seismic specific functions to be functional without affecting the sturdiness of the model.
After some demands and good feedback on the overall design, I decided to make the PDF instructions as it can be easily modified to accommodate other purpose such as fishing, rescue, research etc.
Additional information
Model Size | 46x19x25cm (without end probe) |
---|---|
Color | Black, Orange, Yellow |
Categories | All, Machine |
Motorized | No |
Building Difficulty | Hard |
Piece Count | 1789 |
Bill Of Material | https://rebrickable.com/mocs/MOC-216080/Nico71/30ft-seismic-workboat/#parts |
Purchased File | PDF Instructions (274 pages / 121mo) |
